Circuits Laboratory Equipment Details

Oscilloscope:

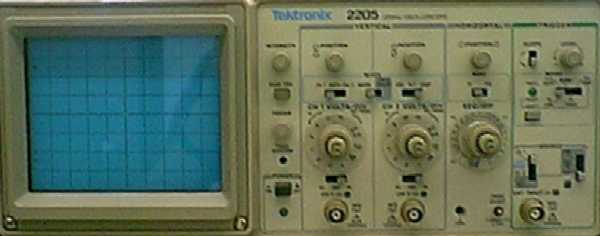

        Tektronix 2205 20MHz Oscilloscope
        Click picture for details

Multimeter:
        Hewlett Packard E2377A Multimeter
        Click picture for details

Proto Board:

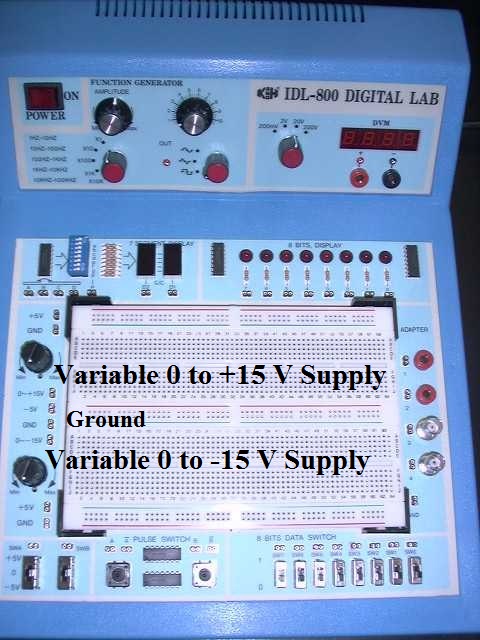

        K&H  IDL-800 Digital Lab


Function Generator:

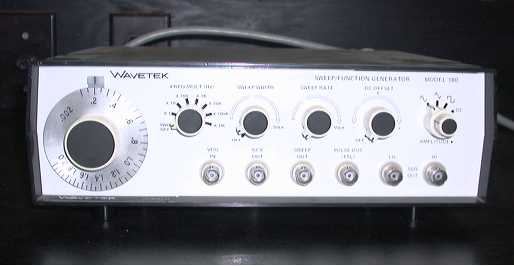

        Wavetek Model 180 Sweep/Function Generator


DC Power Source:

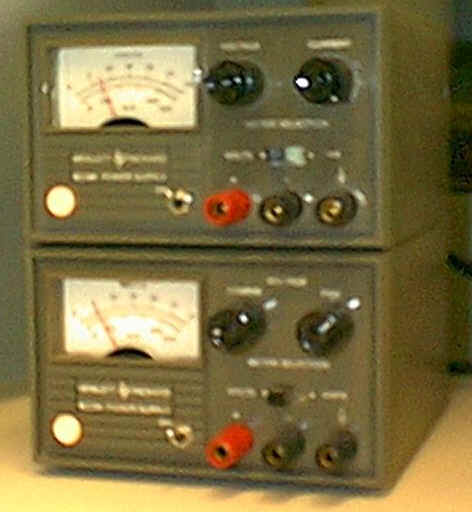

        Hewlett Packard 6215A or 6216A


DC Power Source:
        Built into K&H  IDL-800 Digital Lab

Connectors:
        BNC Connectors

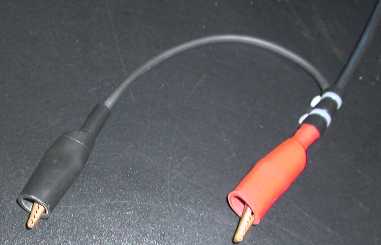

        Alligator Clips

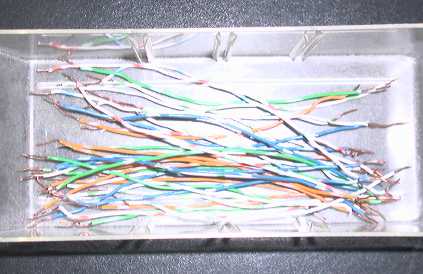

        Short Proto Board Wires


Circuit Components:

        Resistors
        Click picture for color code chart

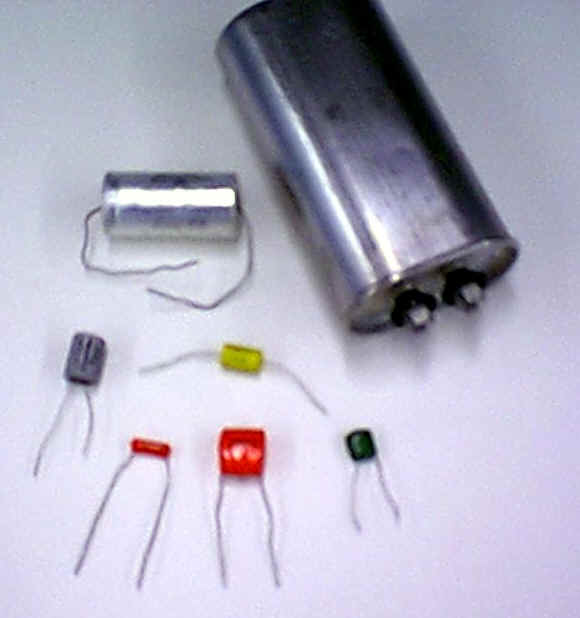

         Capacitors

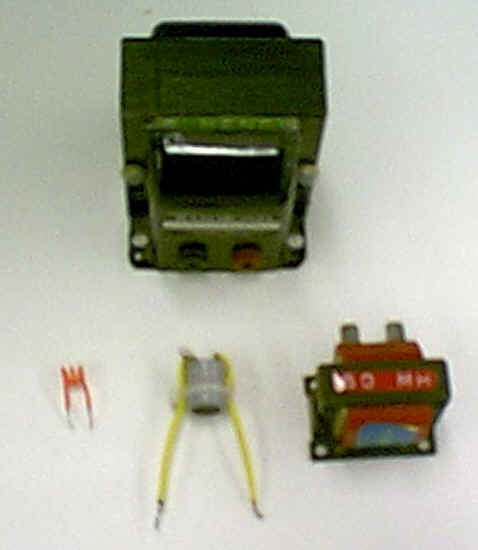

        Inductors


        Operational Amplifiers (Op-Amps)
        Click picture for data sheet
